product name:NC1300 slip form paver

Update time:2019-3-28 16:27:07

Product Details

summary

NC1300 multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve various mold configuration modes, and is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures and farmland water conservancy ditches, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.

The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.


Main technical performance

1. Basic performance parameters

Maximum side paving height 1300mm

Maximum paving width 2000mm

Paving speed 0~15m/min

Travel speed 0~35m/min

2. Powertrain

Engine model YC4DK120-T301 (Yuchai)

Engine Emission Country III

Rated power/speed 88kW/2400r/min

Diesel tank capacity 320L

3. Walking system

Three-track (front one and rear two), hydraulic independent drive, proportional control two-speed motor, planetary gear reducer

Track width 300mm

Track length 1600mm

Climbing capacity ≥ 25%

4. Outrigger steering lifting device

The front track steering device is equipped with displacement sensor for precise proportional control; Outrigger lifting hydraulic proportional control

Minimum turning radius 4240mm

Outrigger hydraulic lifting stroke 900mm

Outrigger mechanical adjustment stroke 280mm

5. Hydraulic system

Imported brand load-sensitive dual-pump hydraulic system, proportional control walking, outrigger turning and lifting, vibrating rod and auger conveying

Hydraulic oil cooling large size radiator, forced air cooling

The hydraulic oil filter is equipped with oil suction filter and the filtering accuracy reaches 10 μ m

Return oil filter

Hydraulic oil tank capacity 130L

6. Electrical control system

Humanized design of operation console, human-computer interactive control screen, clear graphical identification symbols, 24V voltage power supply system

Configure two longitudinal slope sensors, one transverse slope sensor and one steering sensor

Electronic automatic control is adopted for longitudinal slope, cross slope and steering

Equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device

7. Auger conveyor

The hydraulic motor drives the reducer, and the tilt angle and telescopic hydraulic adjustment

Twister speed 0~80r/min

The size of the auger feeding device is 3700mm long, and the blade diameter is 340mm

8. Vibrating compaction system

Imported hydraulic vibrating rod, with independent adjustable vibration frequency and proportional control

Vibrating rod interface 6

Vibrating rod frequency 0~200Hz

9. High-pressure flushing device

Hydraulically driven high pressure ceramic plunger pump, equipped with coil device and high pressure washing water gun

Water tank capacity 320L

10. Mold and mold fixture

According to the working conditions, various molds can be customized to meet the requirements of left paving and middle paving

Hydraulic horizontal stroke of mold fixture 770mm

Hydraulic vertical stroke of mold fixture (double oil cylinder) 410mm

Mechanical vertical stroke of mold fixture 240mm

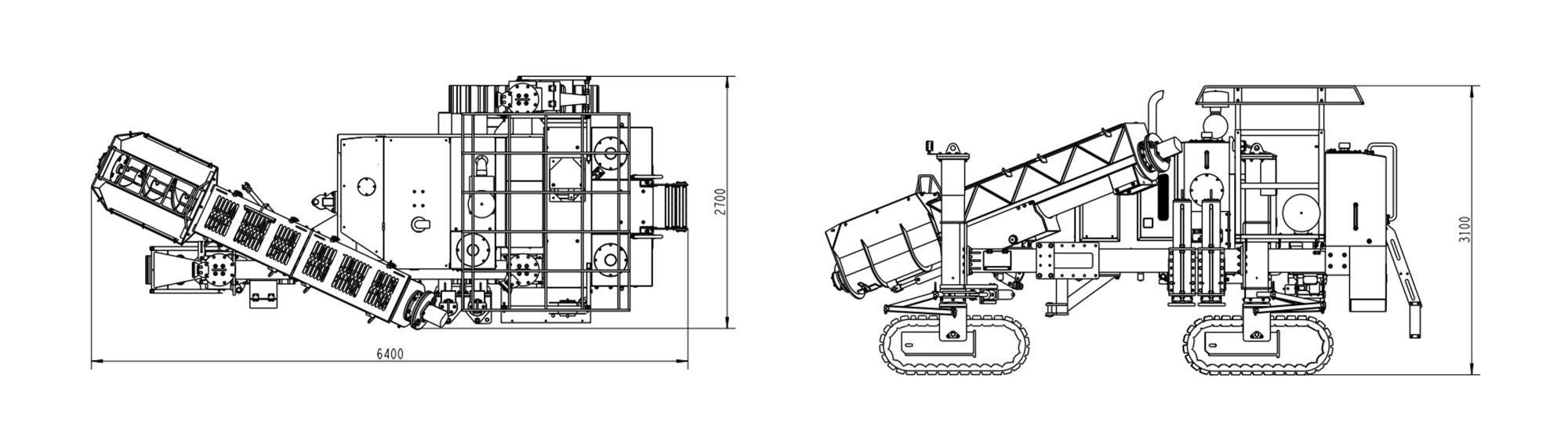

11. Overall dimension and weight (transportation status)

Transport dimension (long × wide × High) (6400 × two thousand and seven hundred × 3100)mm

Operating Weight 11000Kg
