product name:NC1300S slip form paver

Update time:2023-2-8 10:04:55

Product Details

1、 Overview

NC1300S multifunctional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It can achieve various mold configuration modes, and is widely used in the construction fields of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures and farmland water conservancy ditches, replacing the traditional process and significantly improving the construction quality and speed of cement concrete structures.

The machine has a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with automatic steering and automatic leveling control system. It can complete the vibration, paving, extrusion and other technological processes of cement concrete structures at one time.


2、 Main technical parameters


Serial numberNC1300s concrete slip form paver
1. Basic performance parametersMaximum side paving height1300mm
Maximum paving width2000mm
Paving speed0~15m/min
Travel speed0~35m/min
2. Power systemEngine modelYCF36125-T482(YUCHAI)
Engine emissionsPhase IV
Rated power/speed92kW/2200r/min
Diesel tank capacity360L
3. Traveling systemThree tracks (front one and rear two), hydraulic independent drive, proportional control two-speed motor, large speed ratio planetary gear reducer, paving speed closed-loop control, PID adjustment
track width 300mm
Track length1600mm
Gradeability≥20%
4. Outrigger steering lifting deviceThree-track steering device is equipped with displacement sensor, precise proportional control, crab walking Cooperative steering, small turning radius; Outrigger lifting hydraulic proportional control
Minimum turning radius4200mm
Outrigger hydraulic lifting stroke915mm
Outrigger mechanical adjustment stroke280mm
5. Outrigger swing sliding deviceInner and outer swing amplitude of right front outrigger/
Left front outrigger telescopic travel/
Telescopic stroke of rear outrigger/
6. Hydraulic systemImported brand load-sensitive dual-pump hydraulic system, proportional control walking, outrigger steering lifting, vibrating rod
Hydraulic oil coolingLarge radiator, forced air cooling
Hydraulic oil filterEquipped with oil suction filter and filtering accuracy of 10 μ M Return oil filter
Hydraulic tank capacity240L
7. Electrical control systemHumanized design of the operating platform, human-computer interactive control screen, clear graphical identification symbols, 24V voltage power supply system equipped with two longitudinal slope sensors, one inclination sensor, two steering sensors, longitudinal slope, inclination and steering are controlled automatically by electronic control, and the sensor and controller adopt CAN bus communication with the Internet of Things platform, equipped with construction management and monitoring system, and optional remote control device
8. Conveyor belt conveyorThe hydraulic motor drives the reducer, and the tilt angle and telescopic hydraulic adjustment
Speed of conveying belt0~80r/min
Feeder size3700mm long, 340mm blade diameter
9. Vibrating compaction systemImported hydraulic vibrating rod, with independent adjustable vibration frequency and proportional control
Vibrating rod interface6
Vibrating rod frequency0~200Hz
10. Mold and mold fixtureAccording to the working conditions, various molds can be customized to meet the requirements of left and right side paving and middle paving
Hydraulic horizontal stroke of mold fixture770mm
Mold fixture hydraulic vertical stroke (double cylinder)410mm
Mechanical vertical stroke of mold fixture240mm
11. High-pressure flushing deviceHydraulically driven high pressure ceramic plunger pump, equipped with coil device and high pressure washing water gun
Water tank capacity360L

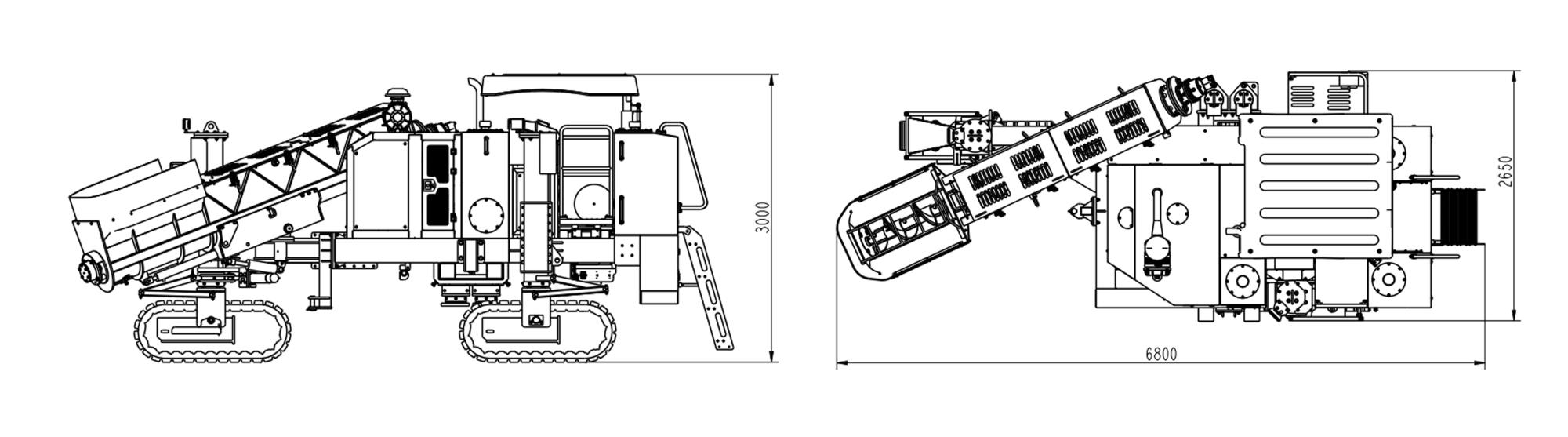

12. Overall dimension and weight (transportation status)Transport dimension (long × wide × High)6800×2650×3000mm
Operating Weight14000Kg


3、 Performance characteristics

1. One machine can be used for multiple purposes. By replacing various molds and accurately adjusting and controlling the vehicle status, the precise slipform paving of road drainage ditches, drain channels, curbs, shoulder stones, concrete guardrails and farmland water conservancy ditches can be achieved.

2. Three-track walking, hydraulic independent drive, proportional control two-speed motor, planetary gear reducer, paving speed closed-loop control, PID regulation, to ensure the stability of low-speed paving and improve the quality of slipform paving; The front track steering device is equipped with a displacement sensor for accurate steering.

3. The engine has strong power and complies with the national emission standard of Phase IV; The hydraulic system adopts load sensitive variable control to supply oil according to the actual load size and speed, with low fuel consumption, energy saving and environmental protection.

4. Humanized design of the operating platform, human-computer interactive control screen and clear graphical identification symbols make the operation of the paver simple and easy; It is equipped with Internet of Things platform, construction management and monitoring system, and optional remote control device.

5. Steering lifting adopts hydraulic proportional control, and is equipped with two longitudinal slope sensors, one steering sensor and one inclination sensor. The sensor and controller adopt CAN bus communication to improve the response speed and stability of the equipment, ensure accurate linear control, and realize overlay paving.

6. According to the working conditions, the right paving and middle paving can be realized; The mould fixing device adopts hydraulic horizontal and vertical two-way adjustment, which can quickly replace various moulds.

7. The inclination and expansion of the auger feeding device adopt hydraulic adjustment, which is easy to operate and suitable for various working conditions; Large storage space can realize the secondary mixing of cement concrete.

8. The structure of the whole machine is compact and can meet the requirements of container transportation.

4、 Statement

Our company follows the principle of sustainable development, so we reserve the right to continuously improve our products without prior notice. The relevant content is subject to continuous improvement without notice.
